| Type: | Worm gear DC Motor | Voltage&Power: | 12VDC,40W |
|---|---|---|---|
| Construction: | Permanent Magnet | Structure and Working Principle: | Brushed |
| Operating Speed: | High Speed | Gear material: | bronze |
| Application: | Universal, Industrial, Household Appliances, machine power system | ||
| Điểm nổi bật: | brushed dc gear motor,geared dc motor |
||

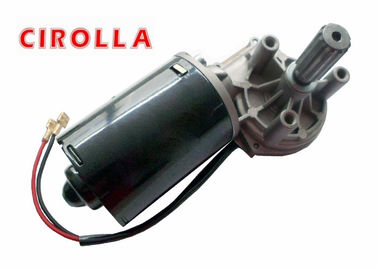

12 volt Gear Reduction Motor PMDC for Auto Garage Door Openers
Description:
A gear motor is a device which allows low-horsepower motors to drive a great deal of force on an object with low speed. It consists of a reduction gear train and an electric motor, which both come fully integrated into an easily mountable and configurable system. The benefit of using gear motors is that they simplify the design and manufacturing of power tools and machines which require high torque, or moment of force, at low shaft speeds or at low revolutions per minute speeds.
Applications:
Gear motors are commonly used in conveyor-belt drives, home appliances, in handicap and platform lifts, medical and laboratory equipment, machine tools, packaging machinery and printing presses.
Specifications:
|
Type |
Brush |
|
Voltage |
13.5VDC |
|
Power |
40W |
|
No load Speed |
40rpm |
|
No load Current |
0.6A |
|
On load Speed |
35rpm |
|
On load Current |
2.8A |
|
Stall torque |
22Nm |
|
Gear material |
Nylon |
|
Protection class |
IP44 |
|
Weight |
1.5kg |
Test report of motors:
|
State |
Voltage |
Current |
Pin |
Torque |
Speed |
Pout |
Eff |
|
V |
A |
W |
N.m |
rpm |
W |
% |
|
|
Speed_max |
13.50 |
0.447 |
6.04 |
0.18 |
36.0 |
0.68 |
11.3 |
|
Eff_max |
13.50 |
1.604 |
21.65 |
2.45 |
31.5 |
8.08 |
37.3 |
|
Pout_max |
13.47 |
8.799 |
118.5 |
13.09 |
17.3 |
23.71 |
20.0 |
|
Torque_max |
13.44 |
16.44 |
221.0 |
22.78 |
0.0 |
0.00 |
0.0 |
|
End |
13.44 |
16.44 |
221.0 |
22.78 |
0.0 |
0.00 |
0.0 |
Competitive Advantage:
These miniature gear motors have also various much-needed characteristics, such as form factors, strength, torque, linear performance and other technical capabilities. All of which are important for such applications. In addition, DC gear motors meet high quality standards of reliability, ruggedness, and compactness. These are characteristics that you need to use in professional commercial applications.
